RCGF México

RCGF STINGER 70 TWIN

$15,320.00

$ 14,100.00 mxp*

precios sujetos a cambio de costo por incremento de dolar

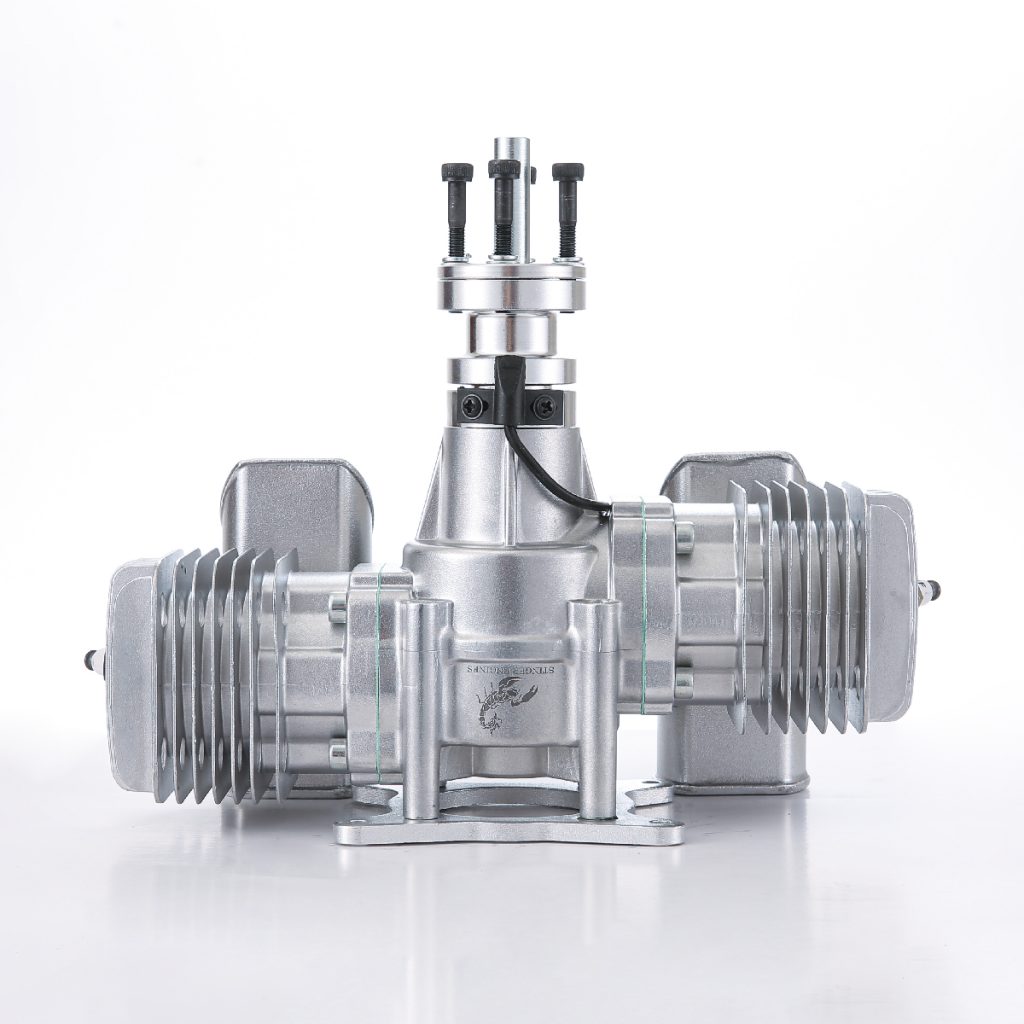

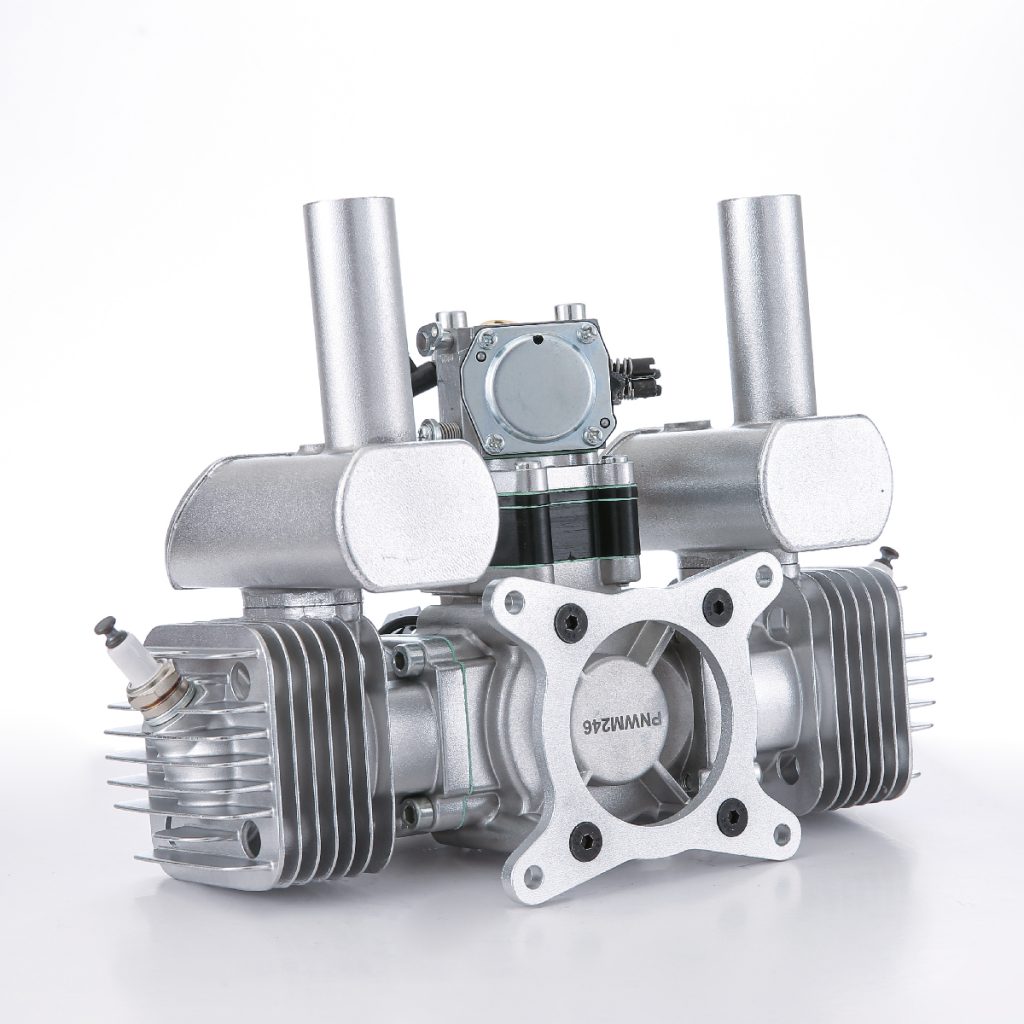

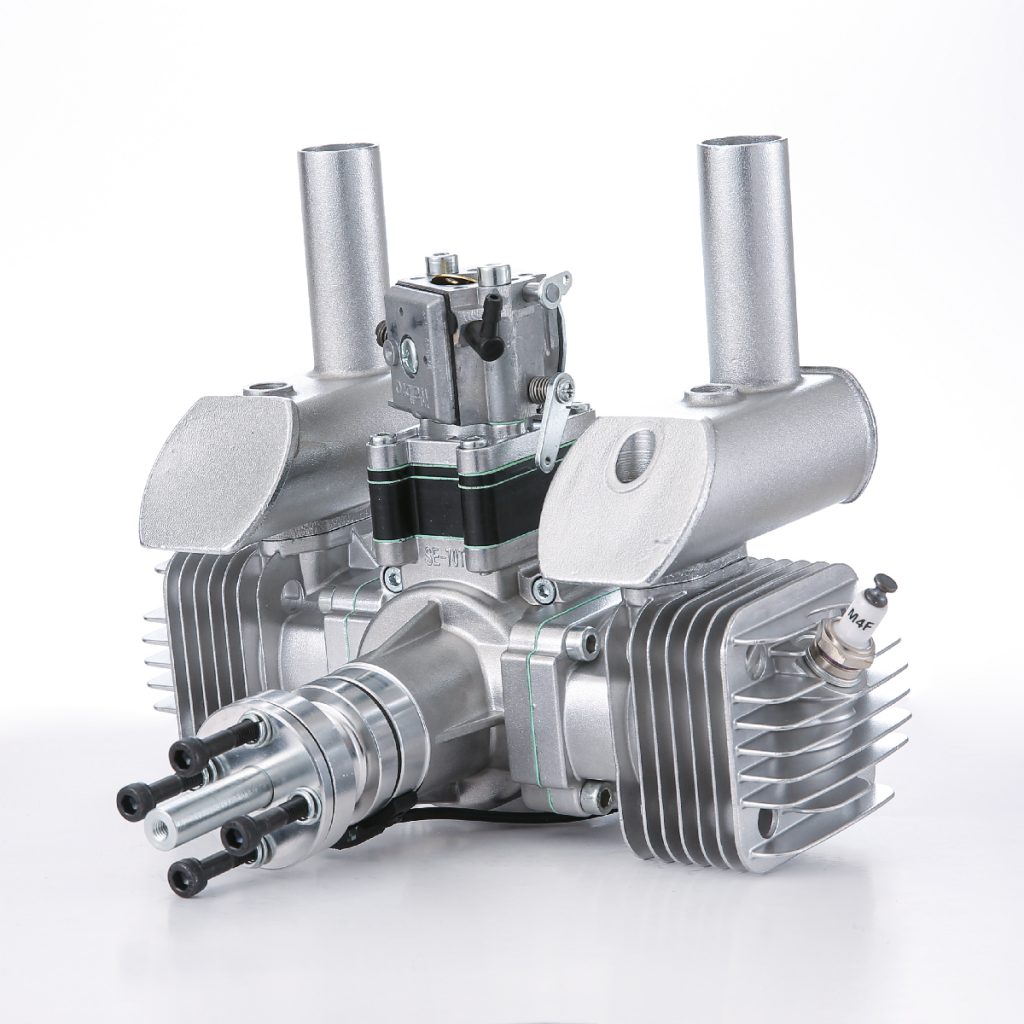

    RCGF Stinger 70cc TWIN

    Parameter

    Type2 cycle piston valve type gasoline engine for airplane
    Displacement (cc)70cc(4.27 cu.in)
    Bore x Stroke (mm)1.53 in(39mm) x 1.18 in (30mm)
    Recommended props22×10, 23×8, 23×10,24X8,24X9
    Maximum Output7.4HP/8600rpm
    Power supply7.4V-14V
    1. Carburetor : Walbro
    2. Ignition : Stinger DC-CDI (Computer Controlled auto advance, electronic ignition system)
    3. SPARK PLUG: NGK CM6 Type
    4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
    5. speed rang : 1500-8600rpm
    6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
    7. Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
    8. Break in Propeller : 23X10 (Standard Two leafs prop)
    9. Cooling System : Air Cooled

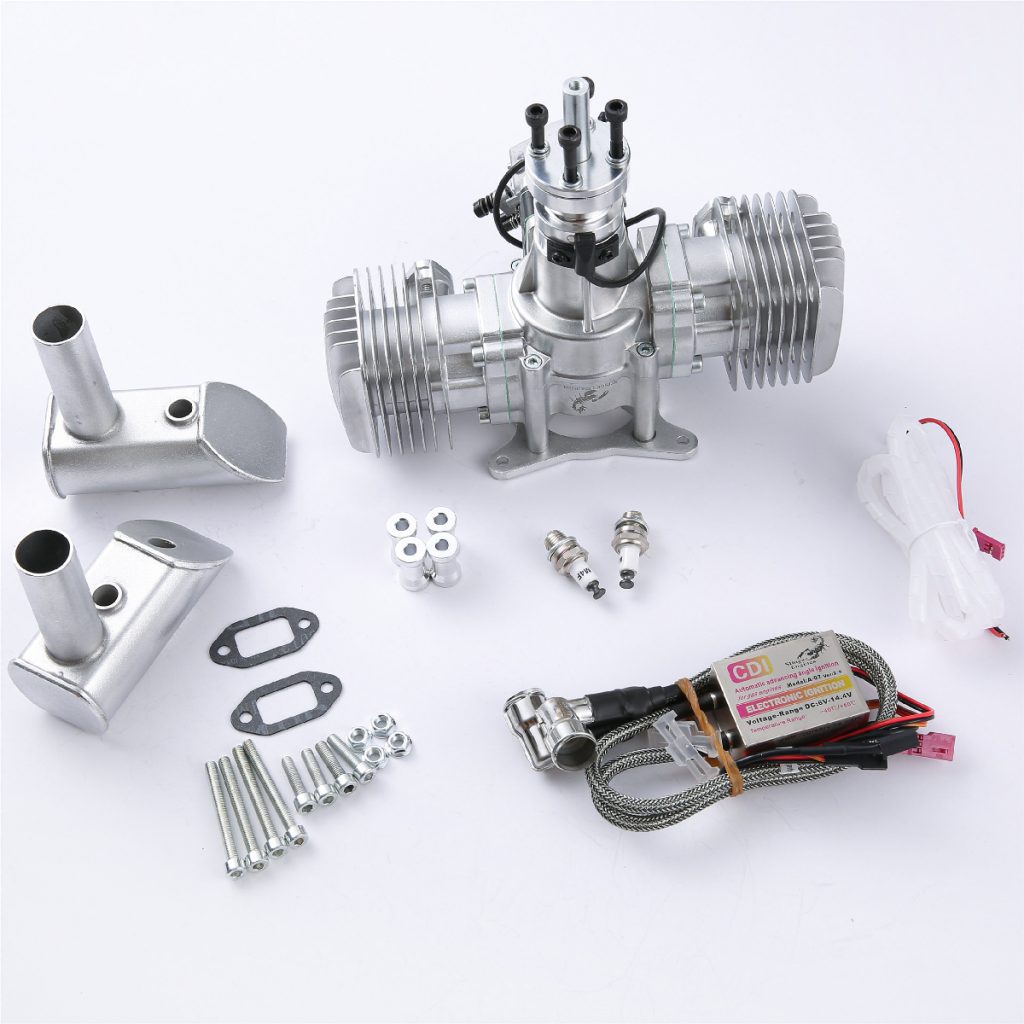

    10. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

    Weight:

    1. Engine: 3.32 lb (1508g)
    2. 2XMuffler: 5.36 oz (152 g)
    3. Ignition Module: 5.1 oz (145 g)
    4. Total: Weight: 3.98 lb (1805 g)

    Technical Data:

    1. Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack
    2. Gasoline/Oil Mix: 30:1
    3. Replacement Spark Plug: NGK CM6 or equivalent
    4. Idle Speed: 1600 rpm/min

    *precios sujetos a costo de dolar y pago via transferencia electronica, efectivo o debito otro medio 4% comision
